6V-4.5AH

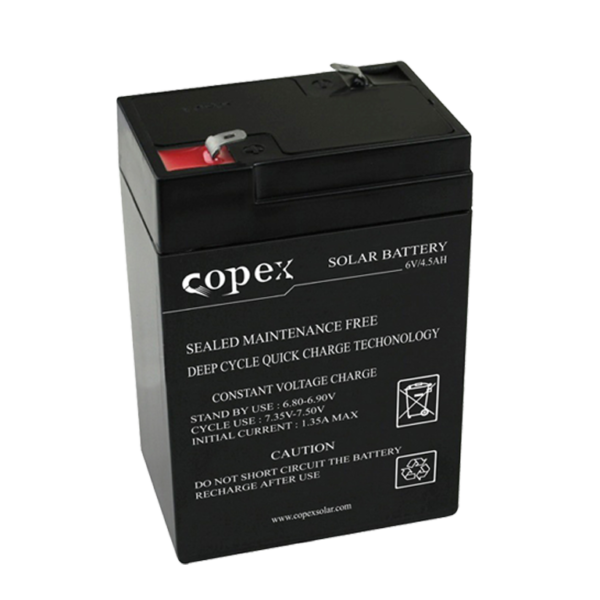

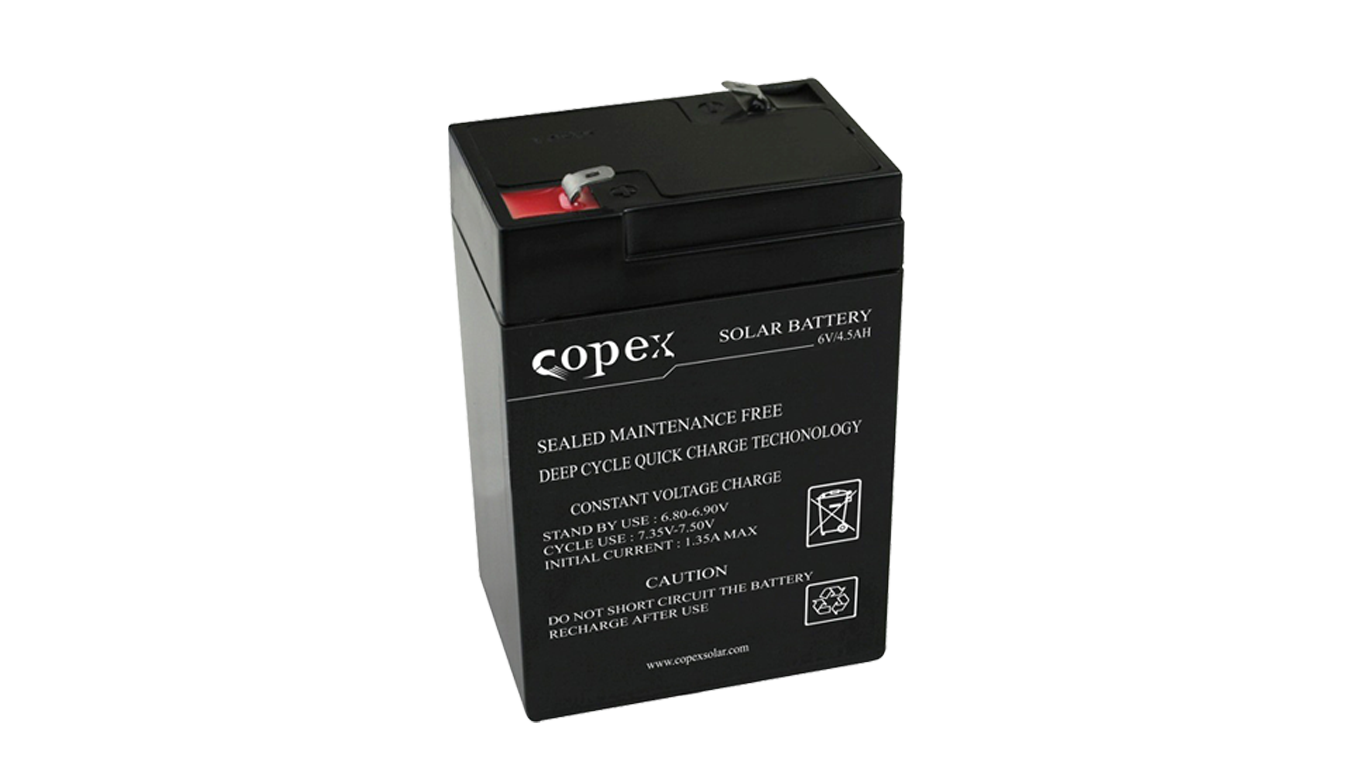

Maintenance Free 6V / 4.5AH

Description

4.5AH

Maintenance Free 6V / 4.5AH

The battery is constructed by plates,separators,safety valves and container. Since the electrolyte is held by a glassmat separator and plates,the battery can use in any direction and position without leakage.

 Outer Dimensions4.5AH Dimensions and WeightLength ( mm / inch )……………………….……. …70 / 2.76Width ( mm / inch ) ……………………………. ……47 / 1.85Height ( mm / inch ) ………………………….……102 / 4.02Total Height ( mm / inch )………………..….…….107 / 4.21Approx.Weight( Kg / lbs )…………………………0.750 / 1.64   Performance CharacteristicsNominal Voltage ……………………..…………………… 6VNumber of cell ……………………………..……………… 3Design Life …………………………………..……………. 5 yearsNominal Capacity 77°F(25°C)20 hour rate(0.225A,5.25V) …………………….….……… 4.5Ah

10 hour rate(0.42A,5.25V) ……………….….……….…….4.2Ah

5 hour rate (0.77 A,5.25V) ………………….……………….3.85Ah

1 hour rate(2.70A,4.80V) …….……………..…..……………2.70Ah

Internal Resistance

Fully Charged battery 77°F(25°C) ………….…..…….….25 mΩ

Self-Discharge

3% of capacity declined per month at 20°C(average)

Operation Temperature Range

Discharge ……………………………………..…………. -20~60°C

Charge ………………………………………..………….. -10~60°C

Storage …………………………………………………… -20~60°C

Max.Discharge Current 77°F(25°C) …………………….67.5A(5s)

Short Circuit Current …………………………………….. 270A



Battery Constructionn

COMPONENT Positive plate Negative plate Container Cover Safety valve Terminal Separator Electrolyte
RAW MATERIAL Lead dioxide Lead ABS ABS Rubber Copper Fiberglass Sulfuric acid

Charging Methods

Application Charging method Charging Voltageat 25°C Temperature compensation coefficient of charging voltage Max.charging current Charging time25°C(h) Temp(°C)
100% discharge 50% discharge
For standby power source Constant voltage &ConstantCurrentCharging(with current restriction) 6.75-6.90V -9 mV/°C 1.35A 24 20 0~40(32~104°F)
Forcycle service 7.30-7.50V -15 mV/°C 1.35A 16 10

*Temperature compensation of charging voltage is not needed.when using the batteries within 15°C to 35°C range.

200 AH2 copy Discharge Constant Current (Amperes at 77°F25°C)

F.V/Time 30min 45min 1h 2h 3h 5h 8h 10h 20h
4.80V 4.50 3.32 2.70 1.50 1.14 0.78 0.51 0.43 0.23
4.95V 4.43 3.29 2.67 1.48 1.14 0.77 0.51 0.43 0.23
5.10V 4.30 3.24 2.65 1.47 1.13 0.77 0.51 0.42 0.23
5.25V 4.07 3.20 2.61 1.45 1.11 0.77 0.50 0.42 0.23
5.40V 3.53 3.16 2.57 1.42 1.08 0.75 0.50 0.41 0.22


Discharge Constant Power (Watts at 77°F25°C)

F.V/Time 30min 45min 1h 2h 3h 5h 8h 10h 20h
4.80V 30.0 21.1 16.9 9.09 6.57 4.50 2.97 2.46 1.35
4.95V 29.0 20.8 16.6 9.00 6.54 4.47 2.94 2.46 1.35
5.10V 27.7 20.5 16.6 8.94 6.51 4.41 2.94 2.46 1.35
5.25V 26.1 20.3 16.4 8.82 6.45 4.41 2.91 2.43 1.32
5.40V 22.6 19.98 16.08 8.55 6.24 4.38 2.91 2.40 1.29
