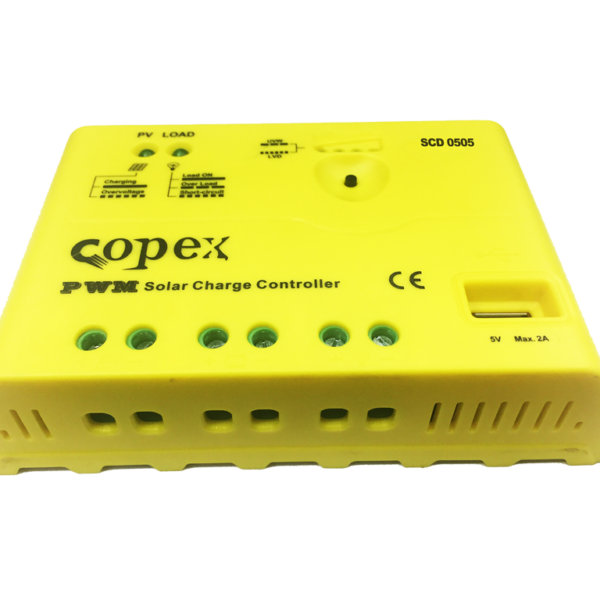

SCD 0505
The SCD Series charge controller has several LED’s various colors emulate a tank display which gives information on the charge status of the battery and display function status.
Description
5A – 12/24V
The SCD Series charge controller has several LED’s various colours emulate a tank display which gives information on the charge status of the battery and display function status
Features:
- Low-loss series of controller
- PWM-controlled constant-Voltage Charging
- Battery charging with automatic charging mode selection
- Automatic adjust to voltage level 12v/24v
- Automatic load reactivation
- Microprocessor Control (CPU)
- LEDs to display the battery charge status
- LEDs (red/green) to display the function status
Electronic Protection Function:
- Battery over load protection
- Deep-discharge protection
- Automatic electronic fuse
- Reverse-polarity protection of the module
- Short-circuit protection of the load and the module
Specification:
| Load current | 05A |
| System voltage | 12V/24V Auto work |
| Max. voltage of solar collector | 47 VDC |
| Enclosure protection class | IP 32 |
| Ambient temperature allowed | -250C…+500C |
| Temperature compensation | -4mV/K/Zelle |
| Thermal Protection | 850C |
