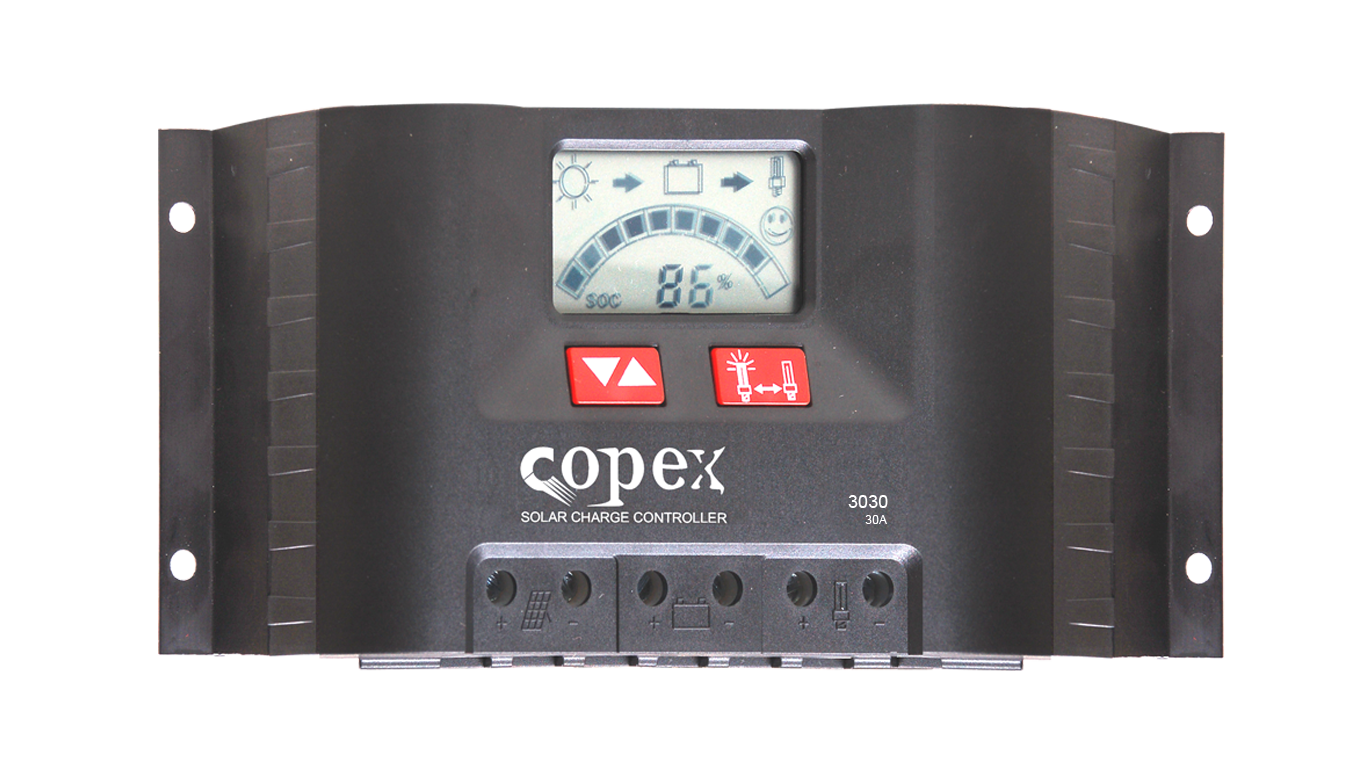

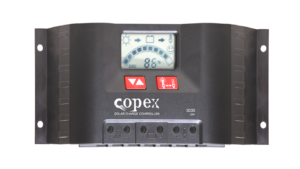

PR 3030

The PR Series of charge controller is the latest charging technologies, result in optimal battery maintenance and control of the module output of up to 900 WP which can be connected it. A large display informs the user about all operating modes with the aid of symbols.

Description

PR 3030

30A – 12/24V

The PR Series of charge controller is the latest charging technologies, result in optimal battery maintenance and control of the module output of up to 900 WP which can be connected it. A large display informs the user about all operating modes with the aid of symbols. Data such as voltage, current and state of charge can also be displayed digitally as figures on the display. In addition, the controller has an energy meter which can be reset by the user.

Features:

  • Hybrid controller
  • Automatic detection of voltage
  • PWM control
  • Multistage charging technology
  • Load disconnection depending on SOC
  • Automatic load reconnection
  • Temperature compensation
  • Common positive grounding or negative grounding on one terminal
  • Integrated self test
  • Night light function
  • Monthly maintenance charge

Technical Specifications

System Voltage 12V/24V/ Auto Work
Own Consumption 12mA
Open Circuit Voltage Solar Module  <47V
Load Current 30A
End of Charge Voltage Liquid 13.9V (27.8V) gel 14.1V (28.2V)
Boost Charging Voltage 14.4V (28.8V)
Equalization Charging Voltage 14.7V (29.4V)
Reconnection Voltage (SOC/LVR)  >50%/12.6V (25.2V)
Deep discharge protection (SOC/LVD)  <30%/11.1V (22.2V)
Ambient temperature  -10oC to… +50oC
