Description
SPECIFICATION | |||

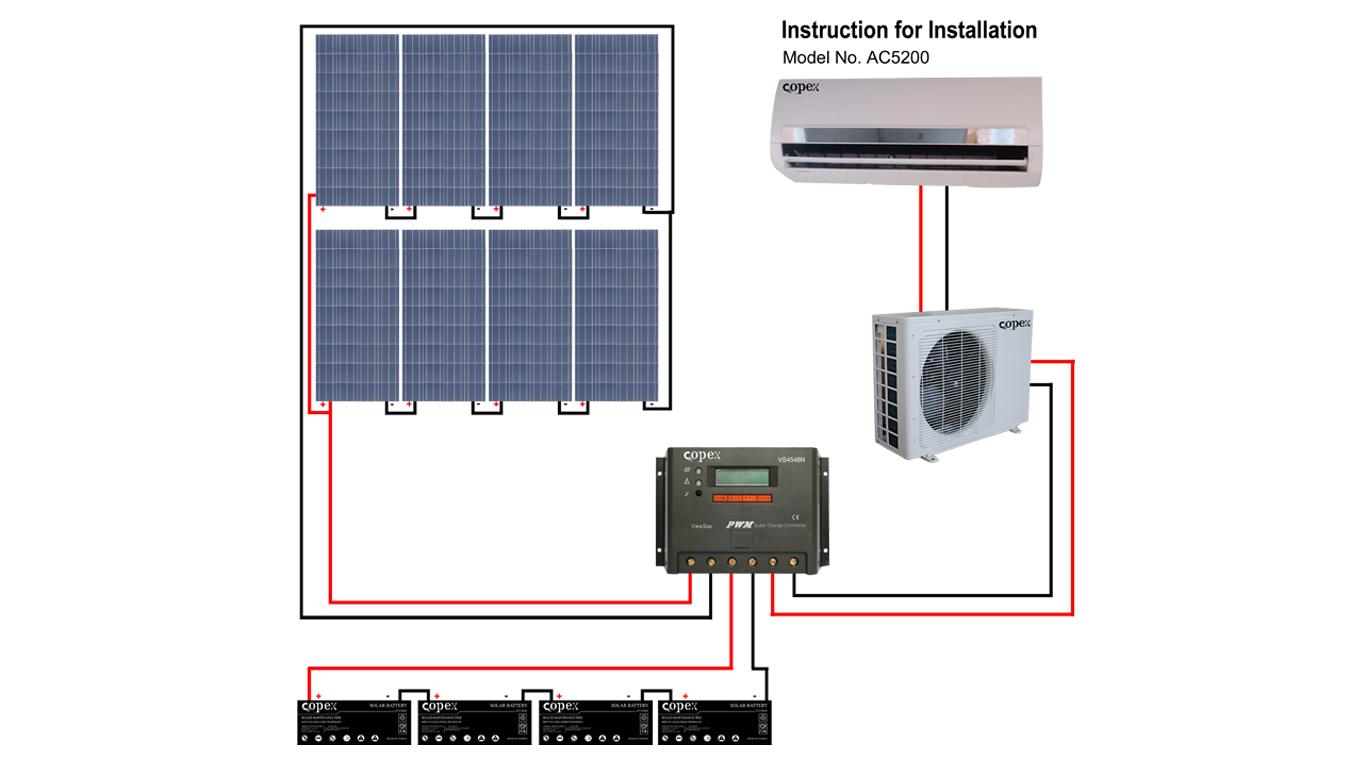

Wall Mounted Type DC Solar Air-Conditioner(4 hours) | |||
Power Supply: 48VDC (44V to 54V) | |||
Model No. | AC5200 | ||
Performance | |||
Capacity | Cooling | Btu/h | 18000 |
W | 5200 | ||
heating | Btu/h | 20000 | |
W | 5400 | ||
Noise | Indoor | dB(A) | ≤44 |
Outdoor | dB(A) | ≤55 | |
Air Circulation | m³/h | 750 | |
Suitable Area | m² | 20~35 | |
EER | W/W | 4 | |
Btu/h/w | 13.85 | ||
Batteries | 12V x 4pcs | ||
Battery AH(each) | AH | 150 | |
Solar panel specification | 150W x 8pcs | ||
Charge Controller | 45A/48V | ||
Refrigerant | R-410A | ||
Compressor | DC 48V | ||
Power Consumption | |||
Power Input | W | 1300 | |
Rated Current | A | 23 | |
Input Power | V | DC 48 |
