30A – 12/24V

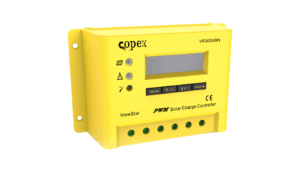

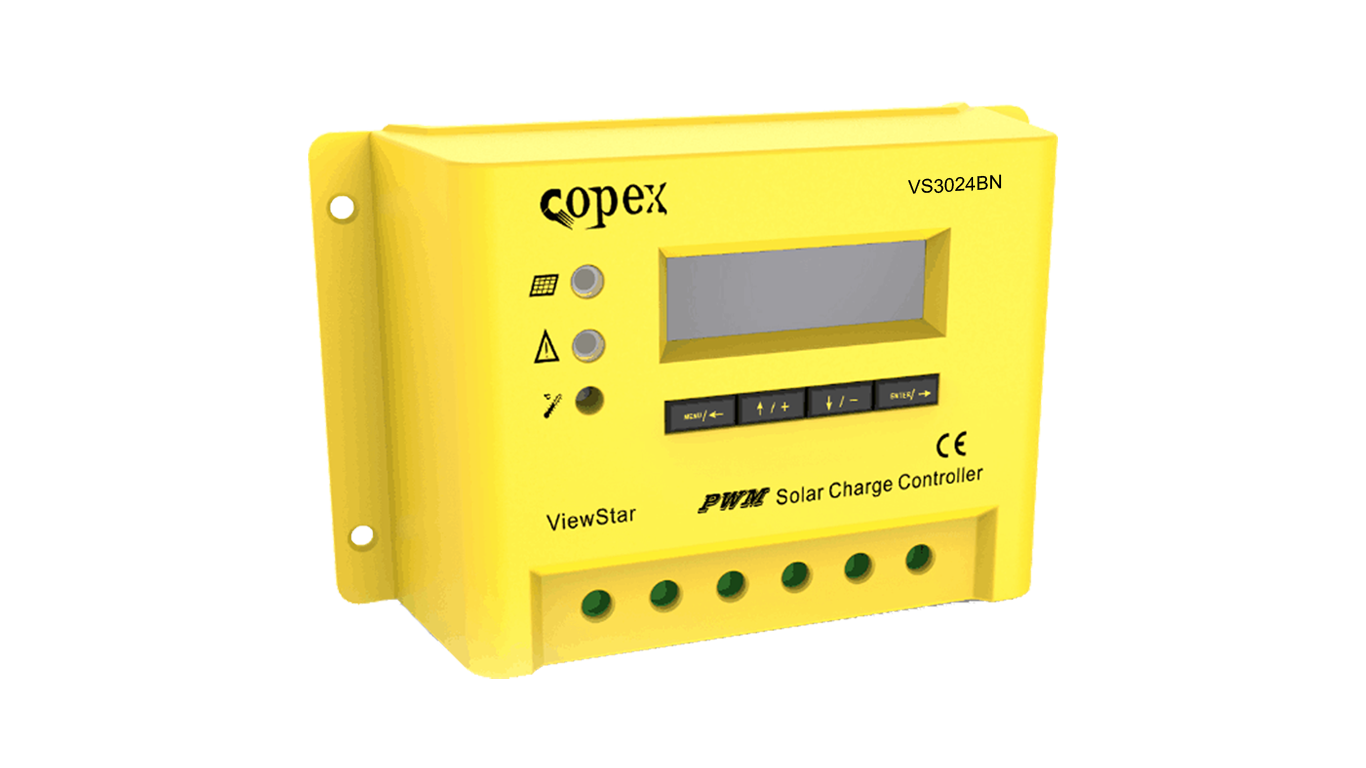

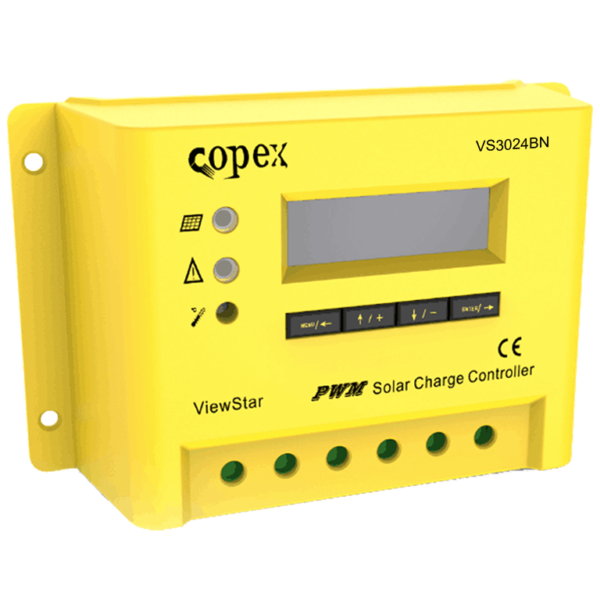

VS Series Solar Controller is our high quality controller for off-grid solar system, such as street light, solar home system or small power station etc.
- Adopt graphics dot-matrix LCD screen and HMI (human-machine interface with 4 buttons, integrated menu displaying and operation
- 32 bit MCU with high speed
- 12 bit A/D high-precision sampling to ensure accuracy
- Excellent EMC design
- High efficient Series PWM charging
- Use MOSFET as electronic switch
- Widely used automatically recognize day/night
- Humanized design of browser interface, undertake every operating conveniently
- Full control parameters setting and modification, undertake every, diversified load control mode
- Gel, Sealed and flooded battery type option
- Adopt temperature compensation, correction algorithm for charging and discharging parameters automatically
|Normal System Voltage||12V/24V Auto Work|
|Rated Battery Current||30A|
|Max. Battery Voltage||32V|
|Equalize Charging Voltage||Sealed: 14.6V; x2/24V Flooded: 14.8V; x2/24V|
|Boost Charging Voltage||Gel 14.2V;x2/24V Sealed: 14.4V;x2/24V Flooded: 14.6V;x2/24V|
|Float Charging Voltage||13.8V;x2/24V|
|Low Voltage Disconnect Voltage||11.1V;x2/24V|
|Working Temperature||-20oC to +55oC|
