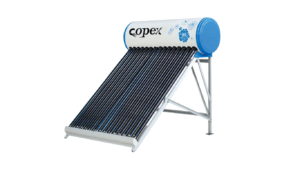

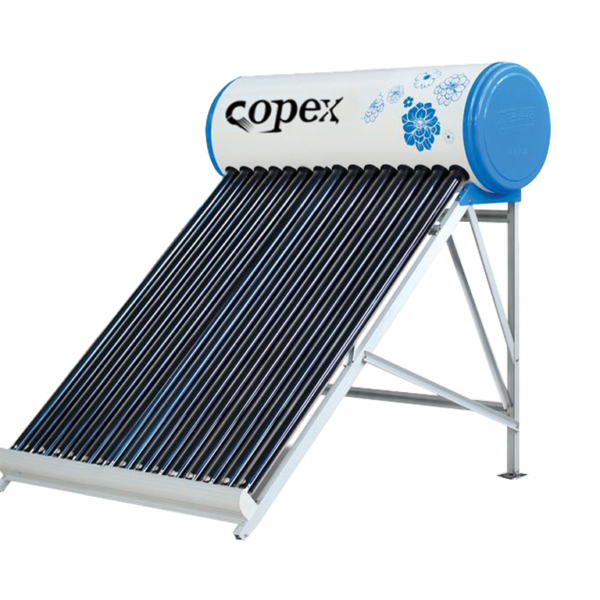

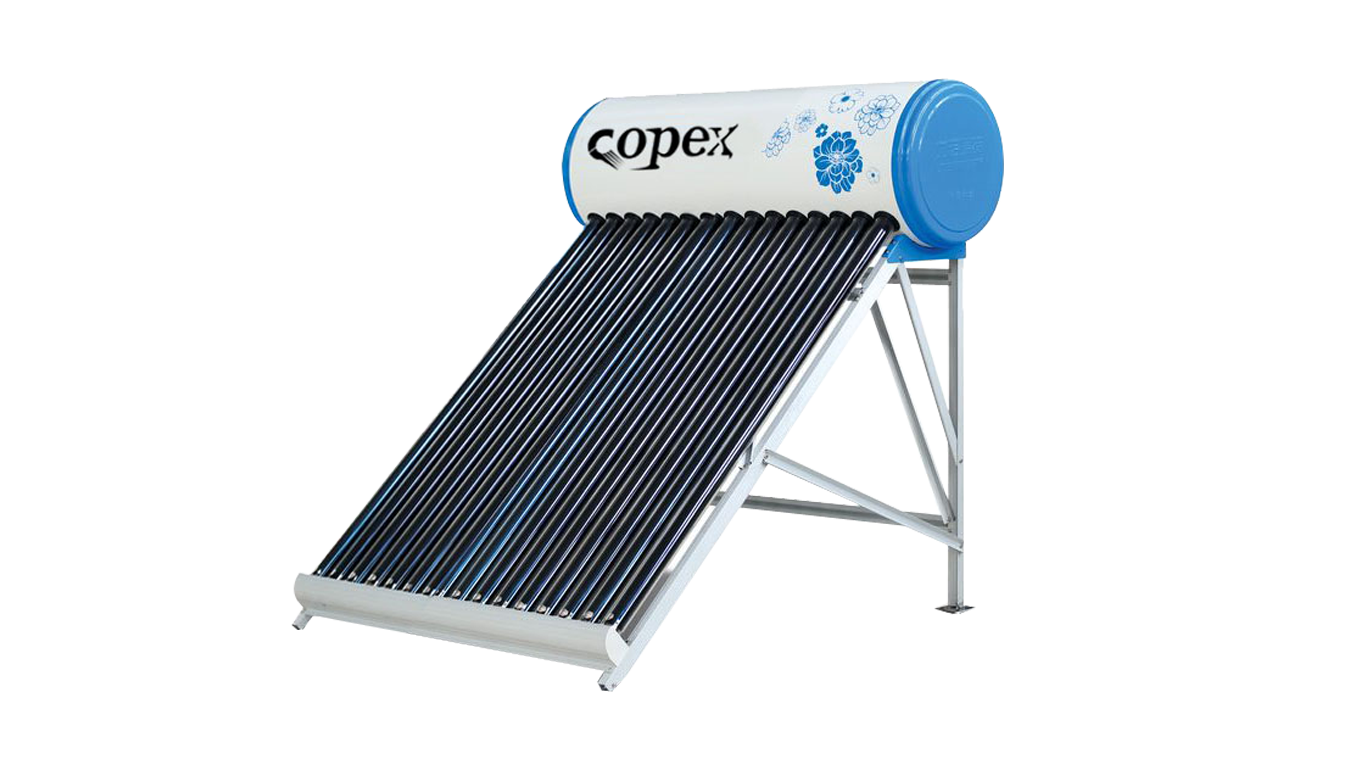

SWH 190

Non Pressurized Solar Water Heater

Category:

Description

SWH 190

Non Pressurized Solar Water Heater

SPECIFICATION
Model SWH 190
Tank Capacity 150L
Tube Capacity 40L
Total Capacity 190L
Inner Tank Material Stainless Steel SUS304-2B
Thickness 0.5mm
Diameter 380mm
Outer Tank Material Whiter Painted Steel
Diameter 472mm
Thickness 0.4mm
Side Cover Sky Blue Side Cover
Insulation Polyurethane,high-pressure foaming,50mm
Connector Diameter 3/4″
Type 58/1800mm,Three-Target high efficent vacuum tube
Tube Quantity 15pieces
Material Aluminum Alloy 6063
Stand Thickness 1.5mm
Inclination 30 Degree
Reflector No Reflector
Other Parts Anod Protection Included(Designed-In With Tank)
Electric Heater Optional, Not Included
Digital Controller Optional, Not Included
Container 20GP/40GP/40HC
