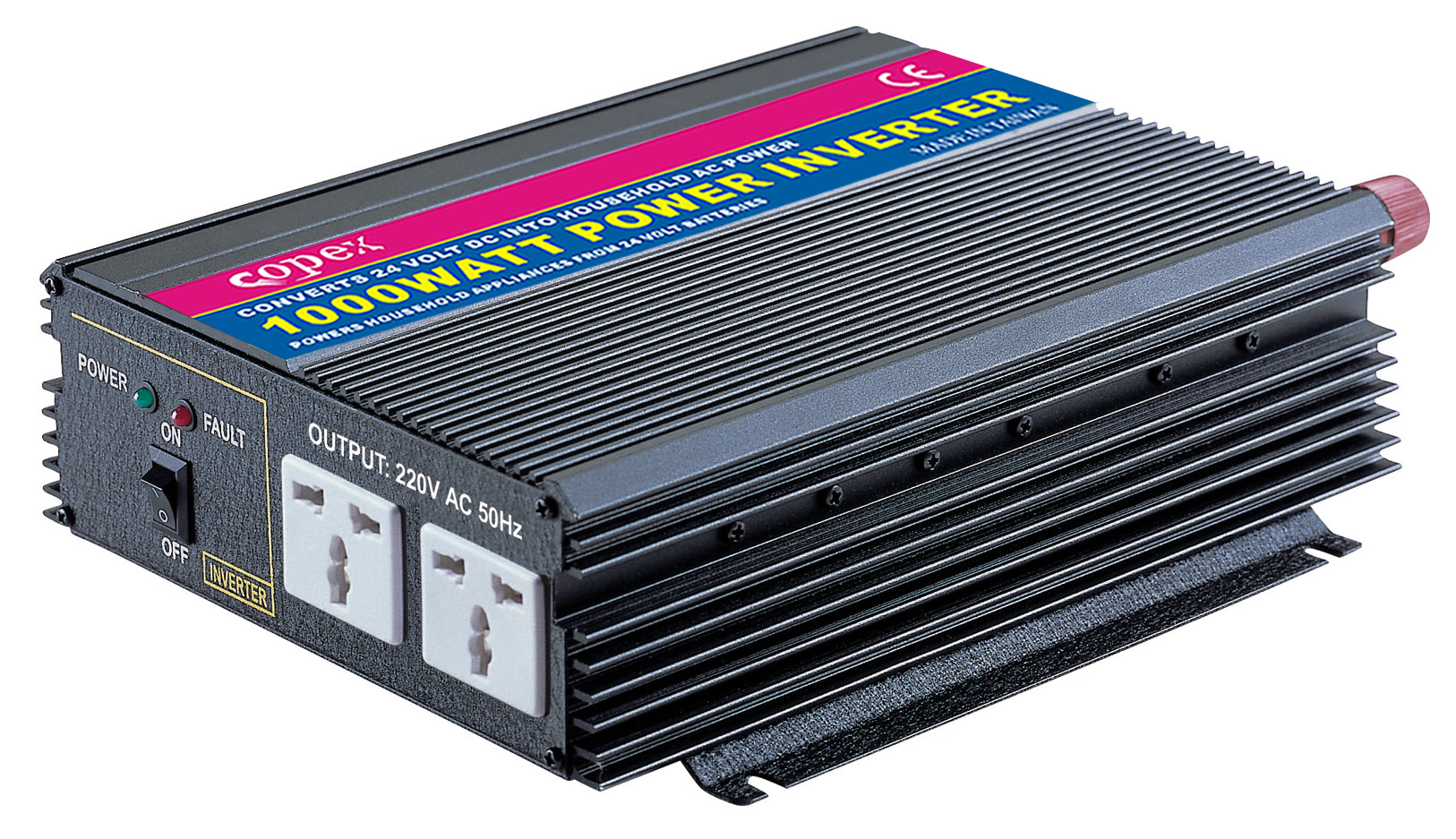

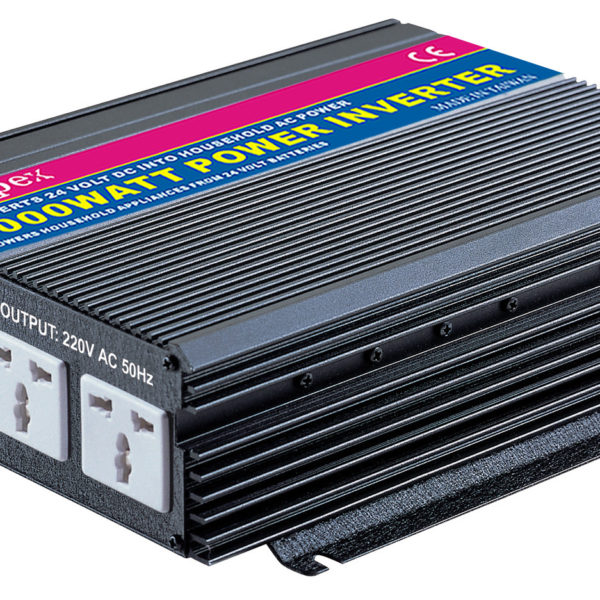

PI 1000/24V

Ultra-Compact Metal Housing, Integrated Fuse Protection

Description

PI-1000-24v

Ultra-Compact Metal Housing, Integrated Fuse Protection: Protects your battery and power inverter from damage due to outlet overload, The inverter can automatically detect low battery voltage and shut down to preserve the battery, Output short circuit protection, Battery protection reverse by fuse.

SPECIFICATION
APPLICATIONS For use in car, boats, trucks, trailers and mobile homes.
Take the power inverter to portable and get power to run lamps, radios or TVs.
In an emergency such as blackout, attach the power inverter to your car battery or portable and get power to run your appliances
TECHNICAL SPECIFICATION Nominal Input Voltage (DC) 24V, 45.8A
Nominal Input Voltage Range (DC) 24V, (20-30V)
Output Power (Continuous Watts) 1000W, 4.4A
Output Power (Peak Watts) 2000W
Standby Current <0.4A
Nominal Input Voltage (AC) 220-240V~
Frequency 50Hz/60Hz
Output Regulation +/- 5% Intelligent Pwm
Output Waveform Modified Sine Wave
Low Battery-Voltage Alarm (Volts) 21+/-0.5V
Low Battery-Voltage Shutdown (Volts) 20+/-0.5V
Efficiency 85~90%
Thermal Protect 65oC+/-5oC
Overload Shutdown & Alarm
Battery Polarity Reverse By Fuse
Output Short Output Short circuit Protection
With Cooling Fan No
AC Outlets Plug U.S.A. Type 2AC Outlets     European Type 2AC Outlets
Replaceable Fuse 6X10A
Dimension (LxWxH) cm 26×19.8×7
Weight 3.2 Kg
