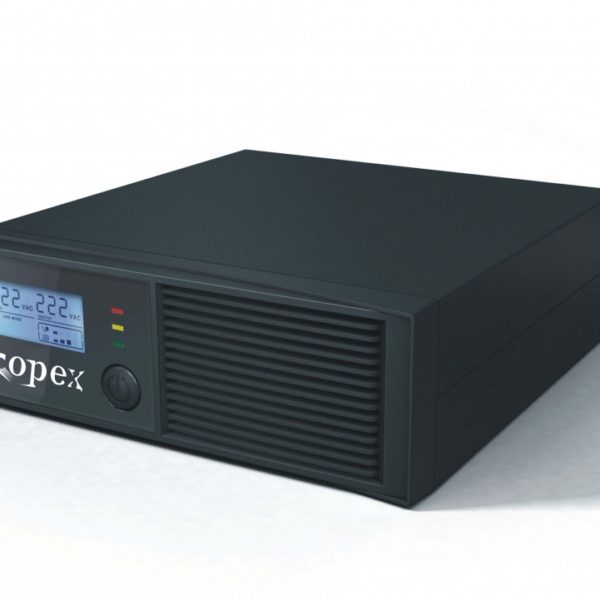

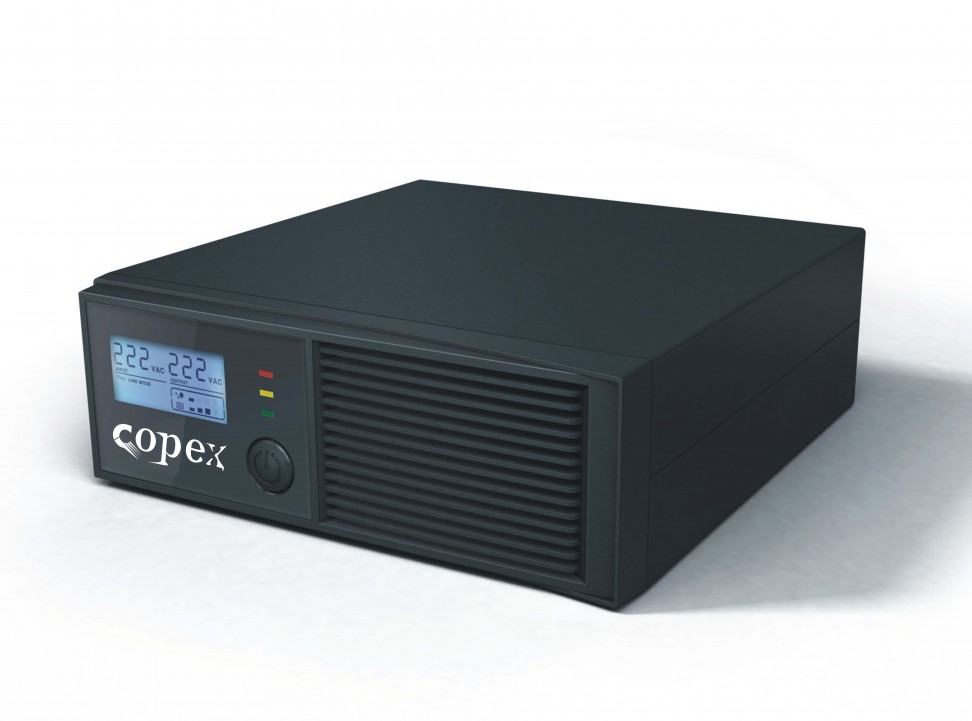

MD 1200
24V / 1200Watt SPECIFICATION AC INPUT Nominal Voltage 220/230/240V AC Input Voltage Range 90~280VAC Nominal Frequency 50/60Hz (Auto Detection) Input Voltage Range Selector Narrow 170~280 VAC Wide 90~280VAC Inverter Mode Output Voltage 230VAC+10/-18% Frequency 50/60Hz±0.5Hz Waveform Modified Sine Wave Efficiency…
Description
24V / 1200Watt
SPECIFICATION | ||
AC INPUT | Nominal Voltage | 220/230/240V AC |
Input Voltage Range | 90~280VAC | |
Nominal Frequency | 50/60Hz (Auto Detection) | |
Input Voltage Range Selector | Narrow | 170~280 VAC |
Wide | 90~280VAC | |
Inverter Mode Output | Voltage | 230VAC+10/-18% |
Frequency | 50/60Hz±0.5Hz | |
Waveform | Modified Sine Wave | |
Efficiency (AC to DC) | >95% | |
Efficiency (DC to AC) | 80% | |
Battery | Nominal Voltage | 24VDC |
Charger | Charging Voltage (Vbat<12.5V) | 28.8+/-0.4 |
Charging Voltage (Vbat<12.5V) | 27.4+/-0.4 | |
Charging Current (10A±2A) | 10A±2A | |
Charging Current (20A±2A) | 20A±2A | |
Overcharging Protection | 32V+/-0.8V | |
Transfer | Transfer Time | Typical 10ms |
Indicator | Line Mode | Green LED blinks or lights steady |
Battery Mode | Yellow LED lights | |
Overload/Fault | Red LED blinks or Lights Steady | |
Audible alarm | Low Battery Voltage in Battery Mode | Beeps every 2 seconds |
Overload | Beeps every 0.5 seconds | |
Fault | Beeps Continuously | |
Enviroment | Temperature | 0~40°C |
Physical | Dimension (mm) DxWxH | 255x80x224 |
Net Weight | 2.5Kg | |
Protection | Deep Discharge Protection | |
Overcharge Protection | ||
Short Circuit Protection | ||
Overload Protection | ||
Battery Short Protection | ||
Over Voltage Protection | ||
Under Voltage Protection |
