CSL80

Description

80watt Solar Street Light System
	Products	Spefication	Qty(pcs)
	solar panel	150watt poly	2
	battery	12v/100Ah	2
	charge controller	24v/20amps	1
	LED street lamp	24v/80watt	1
	battery box		1
	cable	30meters	1
	pole	8m Height	1
	Total price		1 set
Note:light control settings, automatic dusk turn on ,dawn turn off, 8-12 hours working time per day .Full charging working 2-3 raindays .
Solar panel
Model	P150
Maximum power(Wp)	150W
Maximum power voltage(V)	18.0V
Maximum power current(A)	8.33A
Open circuit voltage(V)	21.6V
Short circuit current(A)	9.26A
Cell Efficiency(%)	17%
Maximum system voltage(V)	1000V
Size of module(mm)	148766640
Temperature Range	﹣40℃……﹢85℃
Weight per piece(kg)	12.5kg
Warranty	90% power output over 20 years warranty80% power output over 30 years warranty

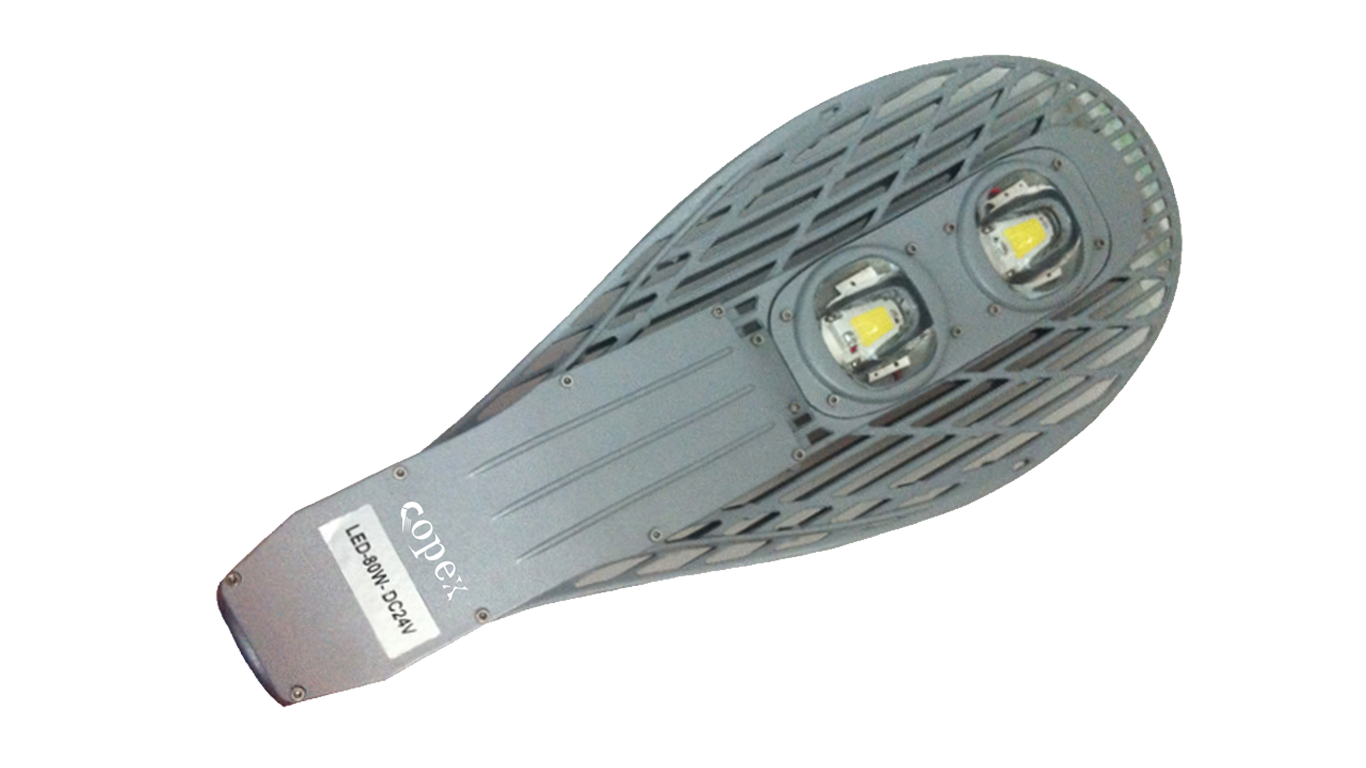

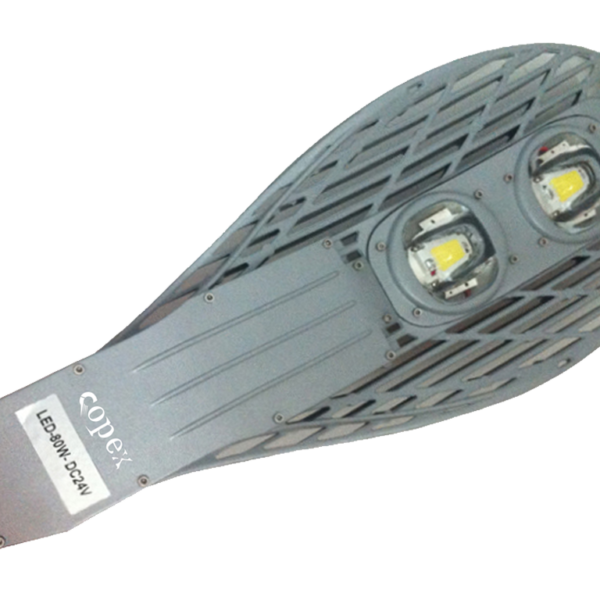

LED street lamp
Model	FL-U2-80W
Power	80W LED
Lamp efficiency	>100Lm/W
LED color temperature	3000k-7000k
Average illumination	High 8M=22Lux14m10m
	High 9M=20Lux15.5m11m
	High 10M=18Lux17m12m
Storage temperature	﹣40℃……﹢60℃
packing size	783017 CM
weight	7.5 kg
Input voltage	DC24V
Warranty	2years product warranty and 10years 80% of power
Deep-circle Battery
Model	100AH/12V
Nominal Voltage	12V
Nominal Capacity	100AH @ 10 hour rate F.V.(1.80V/Cell)
Terminals	B4(Fitting M6 bolt & nut) 12 is optional
Internal Resistance	≤4.0mΩ（Fully Charged）
Max.Discharge Current	800A(5 sec)
Max.Charge Current	36A
Operating Temperature Range	Charge:0℃……40℃
	Discharge:﹣20℃……50℃
	Storage:﹣20℃……40℃
Self Discharge	3% of capacity declined per month at(25℃)
Weight	31.5kg
Dimension	358196270mm
Charge controller(light control and time control,12v/24v AUTO)
Model	FL-SRDH IP67
Equalization voltage(10minutes)	14.8V*2
Boost voltage(10minutes)	14.4V*2
Float voltage	13.6V*2
Load disconnect	11.1V*2
Load reconnect	12.6V*2
Temperature compensation	﹣30mv/℃/12V*2
Temperature	﹣35℃ to ﹢55℃
Normal voltage	12V/24V,automatic recognition
Material	Aluminum
Single size	1408020mm
Single weight	350g
Warranty	2year and lifetime 5years
Pole
Total high	8 meters
Material	high quality galvanized steel
Top diameter	76mm
Bottom diameter	175mm
Wall thickness	4mm
Material	Q235
Weight	125kg
With power coating.
With solar panel bracket
With single arm.
With 350mmX350mmX20mm base plate.
