CSL 40

40watt Solar Street Light System

Category:

Description

40

 40watt Solar Street Light System
 1 Products Spefication Qty(pcs)
solar panel 80watt poly 2
battery 12v/100Ah 1
charge controller 12v/20amps 1
LED street lamp 12v/40watt 1
battery box 1
cable 20meters 1
pole 6m Height 1
Total price 1 set
Note:light control settings, automatic dusk turn on ,dawn turn off, 8-12 hours working time per day .Full charging working 2-3 raindays .
Solar panel
Model P80  80W
Maximum power(Wp) 80Wp
Maximum power voltage(V) 16.50V
Maximum power current(A) 4.84A
Open circuit voltage(V) 21.6V
Short circuit current(A) 5.56A
Cell Efficiency(%) 17%
Maximum system voltage(V) 1000V
Size of module(mm) 1231*547*35
Temperature Range ﹣40℃……﹢85℃
Weight per piece(kg) 8.5kg
Warranty
  • 90% power output over 20 years warranty
  • 80% power output over 30 years warranty

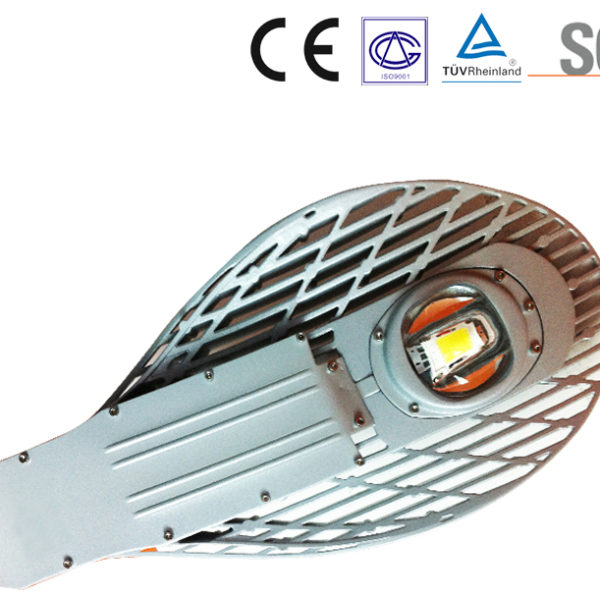

LED street lamp
Model CSL40W  40
Power 40W LED
Lamp efficiency >100Lm/W
LED color temperature 3000k-7000k
Average illumination High 4M=24Lux*11m*8m
High 5M=20Lux*12.5m*9m
High 6M=16Lux*14m*10m
Storage temperature ﹣40℃……﹢60℃
packing size 57*28*17 CM
weight 5.8 kg
Input voltage DC12V
Warranty 2years product warranty and 10years 80% of power
Deep-circle Battery
Model 100AH/12V  12V-100AH
Nominal Voltage 12V
Nominal Capacity 100Ah@10hour rate F.V.(1.80V/cell)
Terminals B4(Fitting M6 bolt & nut) 12 is optional
Internal Resistance ≤4.0mΩ（Fully Charged）
Max.Discharge Current 800A(5 sec)
Max.Charge Current 36A
Operating Temperature Range Charge:0℃……40℃
Discharge:﹣20℃……50℃
Storage:﹣20℃……40℃
Self Discharge 3% of capacity declined per month at(25℃)
Weight 31.5kg
Dimension 358*196*270mm
Charge controller(light control and time control,12v/24v AUTO)
Model FL-SRDH IP67  4
Equalization voltage(10minutes) 14.8V*2
Boost voltage(10minutes) 14.4V*2
Float voltage 13.6V*2
Load disconnect 11.1V*2
Load reconnect 12.6V*2
Temperature compensation ﹣30mv/℃/12V*2
Temperature ﹣35℃ to ﹢55℃
Normal voltage 12V/24V,automatic recognition
Material Aluminum
Single size 140*80*20mm
Single weight 350g
Warranty 2year and lifetime 5years
Pole
Total high 6 meters  Pole
Material high quality galvanized steel
Top diameter 114mm
Bottom diameter 114mm
Wall thickness 3mm
Material Q235
Weight 85kg
With power coating.
With solar panel bracket
With single arm.
With 300mmX300mmX20mm base plate.
