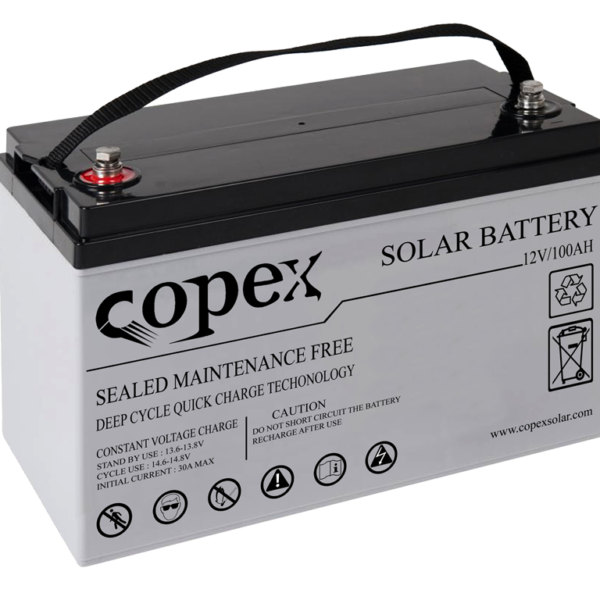

12V-100AH
Maintenance Free 12V / 100AH
Description
Maintenance Free 12V / 100AH
The battery is constructed by plates,separators,safety valves and container. Since the electrolyte is held by a glassmat separator and plates,the battery can use in any direction and position without leakage.
Outer Dimensions Dimensions and WeightLength ( mm / inch )……………………….………330 / 12.95Width ( mm / inch ) ………………………………….171 / 6.77Height ( mm / inch ) …………………..………….…214 / 8.46
Total Height ( mm / inch )…………………………..224 / 8.82 Approx.Weight( Kg / lbs )………………………..…31.2 / 68.8 |
Performance CharacteristicsNominal Voltage ……………………..…………………… 12VNumber of cell ……………………………..……………… 6Design Life …………………………………..……………. 5years
Nominal Capacity 77°F(25°C) 20 hour rate(5.0A,10.5V) …………………….……….…100Ah 10 hour rate(9.27A,10.5V) ……………….….….…….…92.7Ah 5 hour rate (17.2A,10.5V) ……………………………..…86.0Ah 1 hour rate(65A,9.6V) …………………..…..……………. 65Ah Internal Resistance Fully Charged battery 77°F(25°C) ………….…..…….….5mΩ Self-Discharge 3% of capacity declined per month at 20°C(average) Operation Temperature Range Discharge ……………………………………..…………. -20~60°C Charge ………………………………………..………….. -10~60°C Storage …………………………………………………… -20~60°C Max.Discharge Current 77°F(25°C) ……………………. 600A(5s) |
|||||||||||||||||||||||||||||||||||||||||||
Battery Construction
Charging Methods
*Temperature compensation of charging voltage is not needed.when using the batteries within 15°C to 35°C range. |
||||||||||||||||||||||||||||||||||||||||||||
Discharge Constant Current (Amperes at 77°F25°C)
| F.V/Time | 5min | 10min | 15min | 30min | 45min | 3h | 5h | 10h | 20h |
| 9.60V | 326 | 224 | 177 | 109 | 65.7 | 26.4 | 18.5 | 10.3 | 5.35 |
| 10.20V | 310 | 213 | 170 | 105 | 63.0 | 26.0 | 18.2 | 10.2 | 5.35 |
| 10.80V | 291 | 200 | 161 | 99.5 | 59.9 | 25.5 | 17.8 | 10.0 | 5.30 |
Discharge Constant Power (Watts at 77°F25°C)
| F.V/Time | 5min | 10min | 15min | 30min | 45min | 3h | 5h | 10h | 20h |
| 9.60V | 3423 | 2419 | 1943 | 1223 | 749 | 310 | 219 | 123 | 64.2 |
| 10.20V | 3252 | 2298 | 1866 | 1174 | 719 | 306 | 215 | 122 | 64.2 |
| 10.80V | 3057 | 2160 | 1772 | 1115 | 683 | 300 | 210 | 119 | 63.6 |
