Description
Features
- Power range 10 KW
- 48VDC input voltage Powerful Charge Rate Up to 100Amp Inbuilt pure copper transformer
- Pure sine wave output
- LED+LCD display
- MPPT solar charge controller 60A(120A Optional) MPPT Efficiency max 98%
- 50/60HZ automatic sensing
- RS485 with free CD Battery priority function
- Automatically send signal to start generator
- DC Start & Automatic Self-Diagnostic Function High Efficiency Design & “Power Saving Mode” to Conserve Energy
Specification

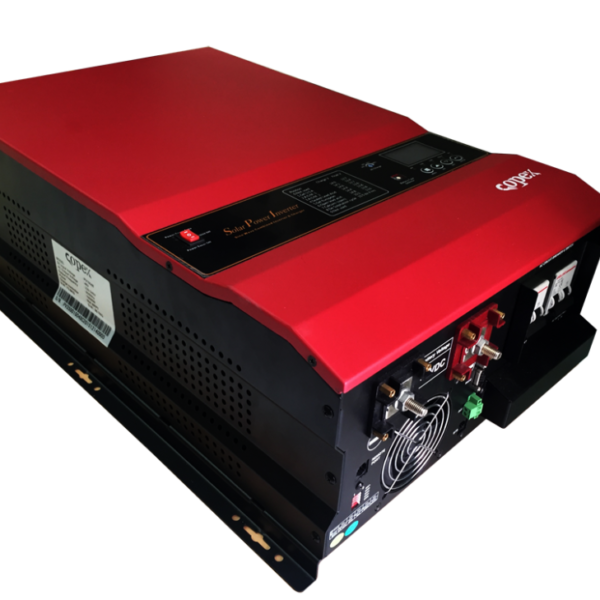

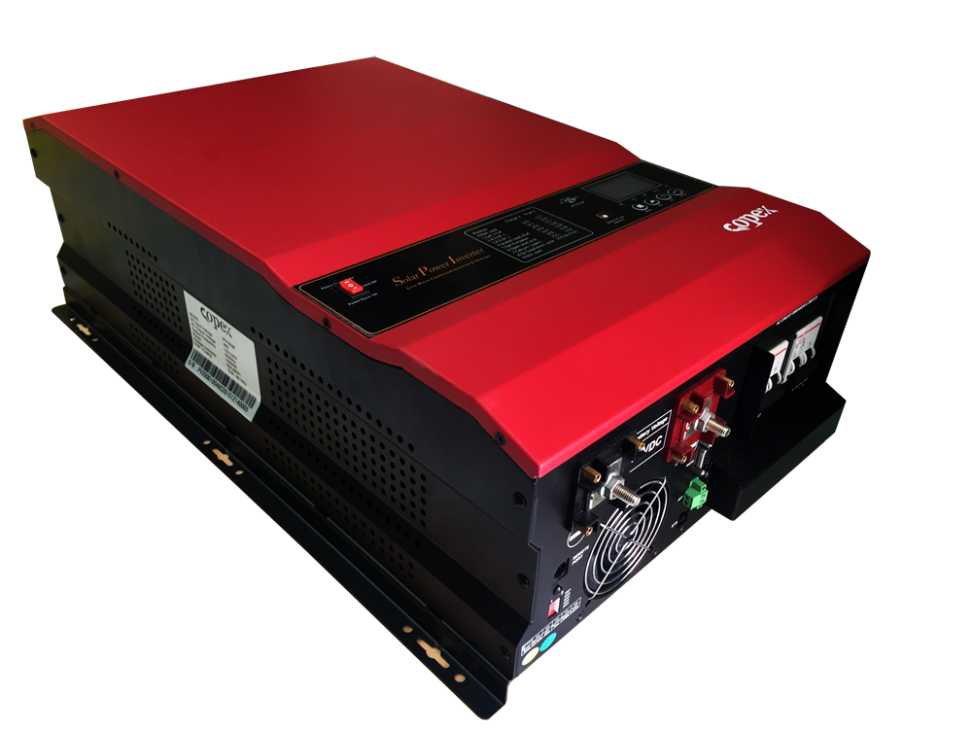

MODEL | PV 10048 | |
Default Battery System Voltage (VDC) | 48VDC | |
INVERTER OUTPUT | Rated Power | 10.0KW |
Surge Rating (20ms) | 30.0KW | |
Capable Of Starting Electric Motor | 5HP | |
Waveform | Pure sine wave/ same as input (bypass mode) | |
Nominal Output Voltage RMS | 220V/230V/240VAC(+/-10% RMS) | |
Output Frequency | 50Hz/60Hz +/-0.3 Hz | |
Inverter Efficiency(Peak) | >88% | |
Line Mode Efficiency | >95% | |
Power Factor | 0.8 | |
Typical Transfer Time | 10ms(max) | |
AC INPUT | Voltage | 230VAC |
Selectable Voltage Range | 155~280VAC(For Personal Computers) | |
Frequency Range | 50Hz/60Hz (Auto sensing) 40-80Hz | |
BATTERY | Minimum Start Voltage | 20.0VDC/21.0VDC for24VDC mode (40.0VDC/42.0VDC for 48VDC mode) |
Low Battery Alarm | 21.0VDC+/-0.3V for 24VDC mode (42.0VDC+/-0.6V for 48VDC mode) | |
Low Battery Cutoff | 20.0VDC+/-0.3V for 24VDC mode (40.0VDC+/-0.6V for 48VDC mode) | |
High Voltage Alarm | 32.0VDC+/-0.3V for 24VDC mode (64.0VDC+/-0.6V for 48VDC mode) | |
High Battery Voltage Recover | 31.0VDC+/-0.3V for 24VDC mode (62.0VDC+/-0.6V for 48VDC mode) | |
Idle Consumption-Search Mode | <35W when power saver on | |
AC CHARGER | Output Voltage | Depends on battery type |
Charger AC Input Breaker Rating | 50A | |
Overcharge Protection S.D. | 31.4VDC for 24VDC mode (62.8VDC for 48VDC mode ) | |
Maximum Charge Current | 80A | |
BTS | Continuous Output Power | Yes Variances in charging voltage & S.D. voltage base on the battery temperature |
BYPASS & PROTECTION |
Input Voltage Waveform | Sine wave (grid or generator) |
Nominal Input Frequency | 50Hz or 60Hz | |
Overload Protection (SMPS Load) | Circuit breaker | |
Output Short Circuit Protection | Circuit breaker | |
Bypass Breaker Rating | 80A | |
Max Bypass Current | 80Amp | |
SOLAR CHARGER | Maximum PV Charge Current | 60A(120A Optional) |
DC Voltage | 48V | |
Maximum PV Array Power | 3200W(6400W for 120A Optional) | |
MPPT Range @ Operating Voltage(VDC) | 64~147VDC | |
Maximum PV Array Open Circuit Voltage | 147VDC | |
Maximum Efficiency | >98% | |
Standby Power Consumption | <2W | |
MECHANICAL SPECIFICATIONS | Mounting | Wall mount |
Dimensions (W*H*D) | 607*410*215mm | |
Net Weight (Solar CHG) kg | 75.75+2.5 | |
Shipping Dimensions(W*H*D) | 802*533*429.5mm | |
Shipping Weight (Solar CHG) kg | 95.5+2.5 | |
OTHER | Operation Temperature Range | 0°C to 40°C |
Storage Temperature | -15°C to 60°C | |
Audible Noise | 60dB MAX | |
Display | LED+LCD | |
Loading(20GP/40GP/40HQ) | 140pcs/280pcs/320pcs |
