P 5

P 5 is a robust solar module with 18 solar cells.


P 5

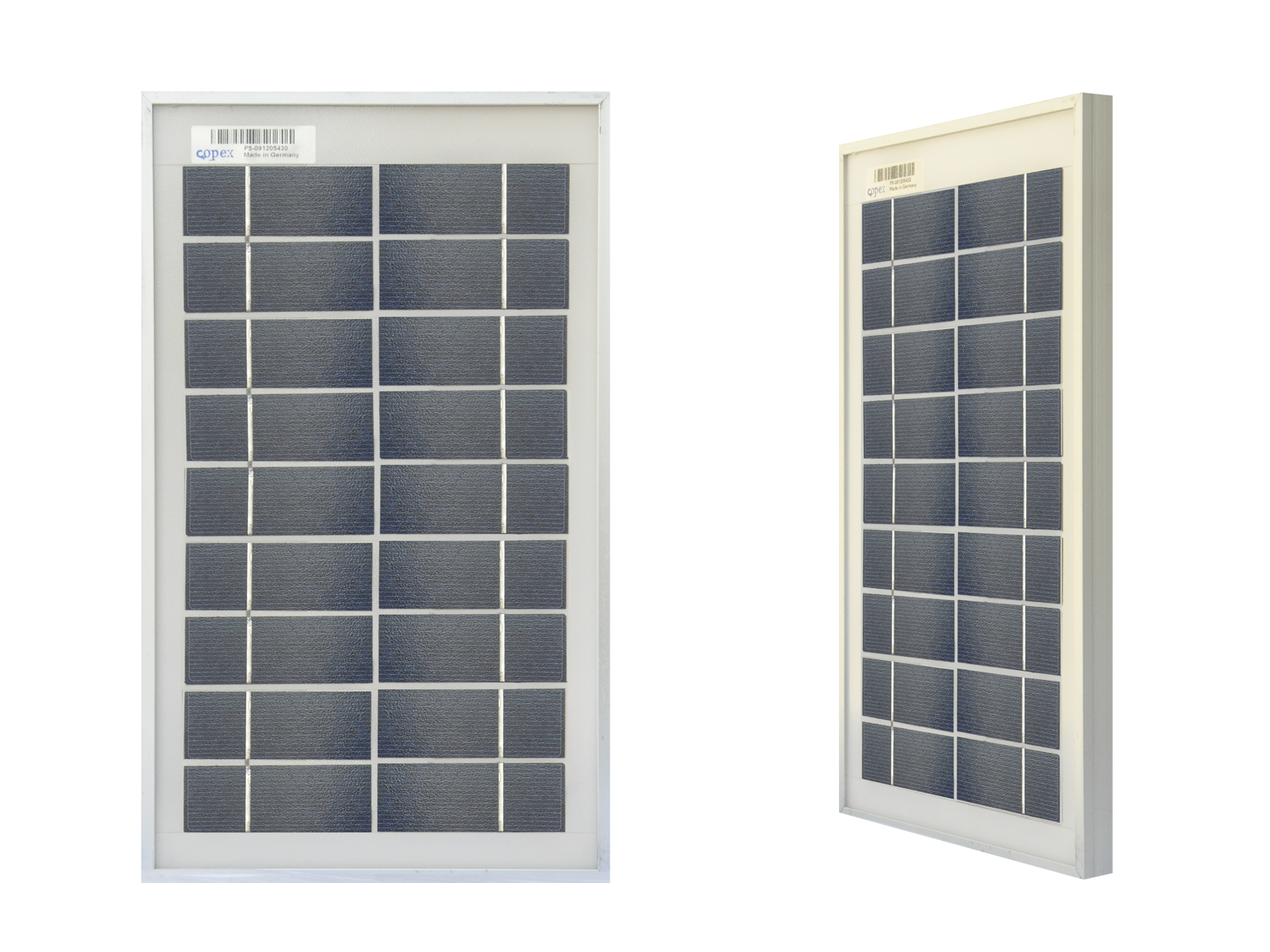

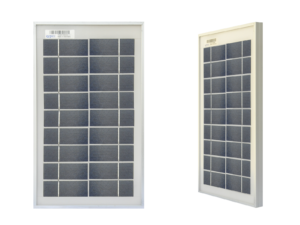

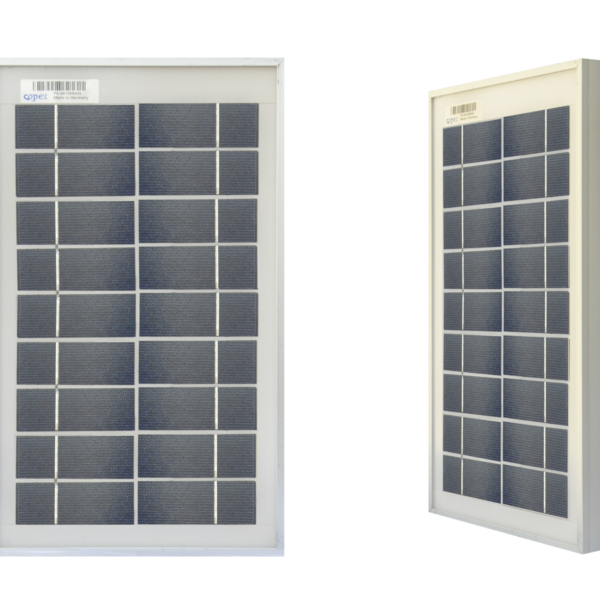

5 Watt Poly Crystalline Solar Panel

              P 5 is a robust solar module with 18 solar cells.These modules can be used for off-grid solar applications. Our meticulous design and production techniques ensure a high-yield, long-term performance for every module produced. Our rigorous quality control and in-house testing facilities guarantee COPEX Solar’s modules meet the highest quality standards possible.

  • Power supply for remote telecommunication equipment
  • Traffic, security environment, and other remote monitoring and signaling systems
  • Water pumping systems
  • Rural area applications
  • Other off-grid applications


  • Residential roof-top systems
  • Commercial/industrial building roof-top systems
  • Large on-grid and off-grid solar power stations
  • Rural area applications
  • Other on-grid and off-grid applications

Increased system reliability, secured investment

  • Long term system reliability with IP67 Junction Box
  • Robust frame to hold 5400 Pa load
  • Salt Mist, ammonia and blowing sand resistance, apply to seaside, farm and desert environment

Extra value to customers, more benefits

  • Dedicated customer support teams are staffed by technical support engineers and after-sale customer service representatives.
  • 90% power output over 20 years warranty
  • 80% power output over 30 years warranty
Electrical Specification Nominal maximum power 5W
Optimum operating Voltage 8.8V
Optimum Operating Current (Imp) 0.57A
Open Circuit Voltage (Voc) 10.8V
Short Circuit Current (Isc) 0.62A
Operating Temperature -40°C~+85°C
Maximum System Voltage 1000V (IEC)/600V (UL)
Maximum Series Fuse Rating 10A
Power Tolerance ±5W
Temperature Cofficient Pmax  -0.45/oC
Voc  -0.35/oC
Isc  -0.060/oC
NOCT  45oC
Mechanical Data Cell Type Poly crystalline
Cell Arrangement 18 (2×9)
Dimensions 320x190x18mm
Weights 0.5 (kg)
Front Cover Tempered glass
Frame material Anodized aluminum alloy
Standard Packaging (Modules/Cartoon) 2pcs

Engineering Drawing

P 5
