Description

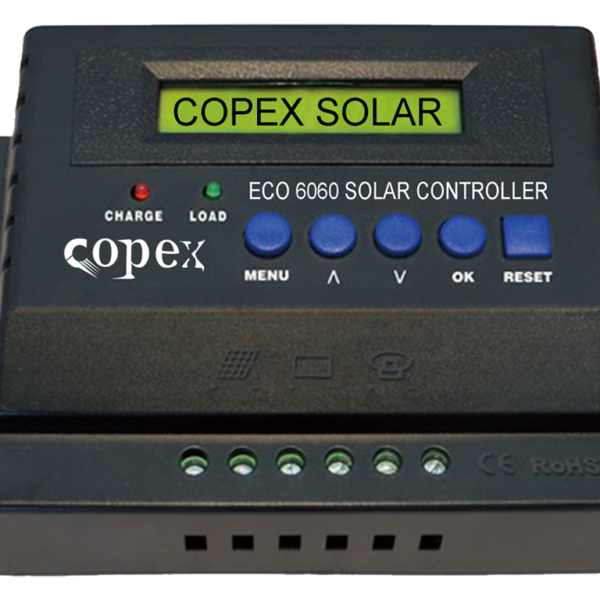

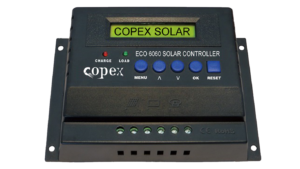

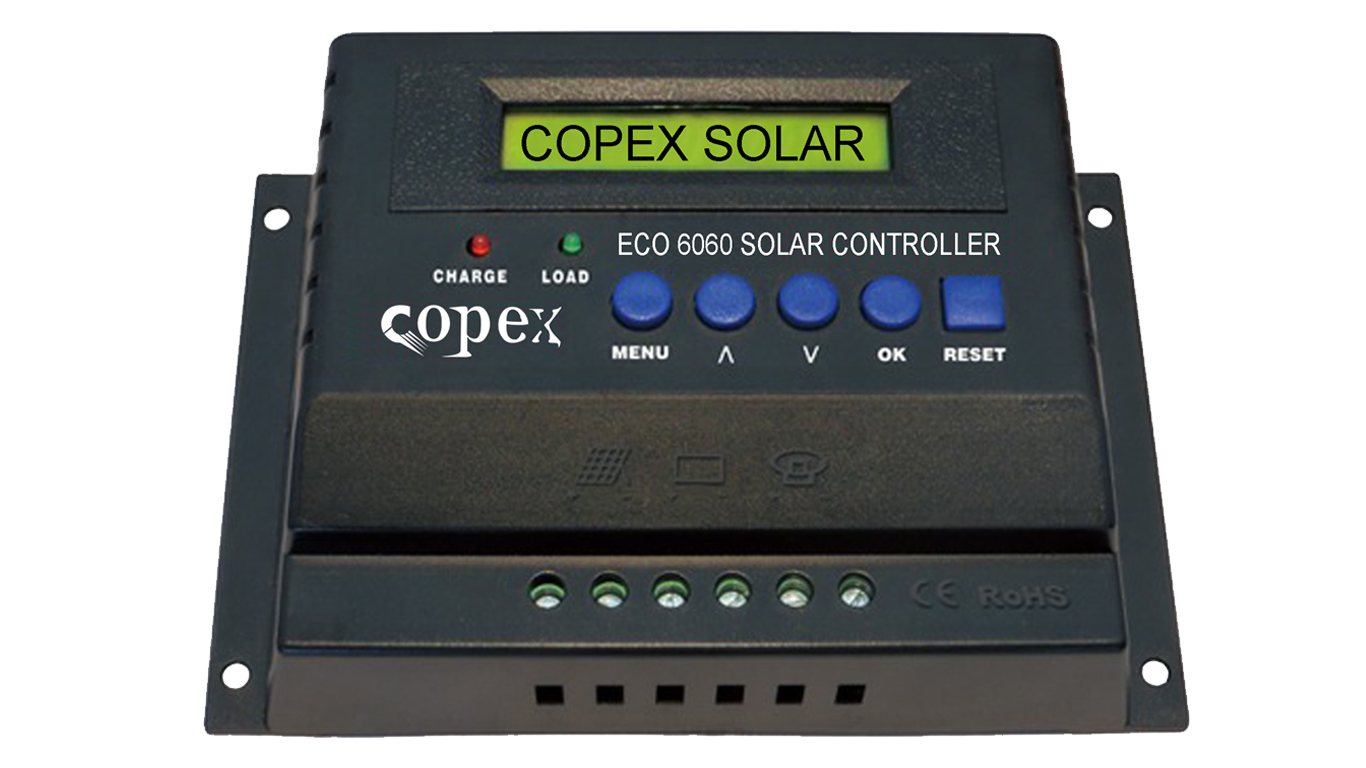

60A – 12/24V
The ECO series (economic) has LCD display, The LCD will show the voltage of battery, charge current and current of loads in turn of every 5 seconds. Users can setup the charge-off voltage, the load off voltage, the load-on voltage according to the user’s requirements.
Features:
- Overload protection
- Short circuit protection
- Reverse discharge protection
- Reverse polarity connection protection
- Thunder Protection
- Low voltage protection
- Overcharge Protection
- Battery stop & charge HVD sets up
- Charge & low voltage LCD sets up
- Display the capability of the battery SOC
- Load & comeback setups.
- Intellectualized temperature compensation
- Store, calculate and display the charged AH on the LCD screen.
- Working temperature:- 25o C….+55oC
Technical Specifications:
Rated Voltage | 12V/24V/ Auto Work |
Max Load Current | 60A |
Input voltage range | 12V-17V/24V-34V |
Length ≤ 1m charge loop drop | 0.25V |
Length ≤ 1m discharge loop drop | 0.05V |
Over voltage protection | 17V/34V |
Full Charge Cut | 13.7V/27.4V |
Low Voltage Cut | 10.5V-11V/21V-22V |
Temperature Compensation | -3mv/o C/cell |
Ambient temperature | -25oC … +55oC |
